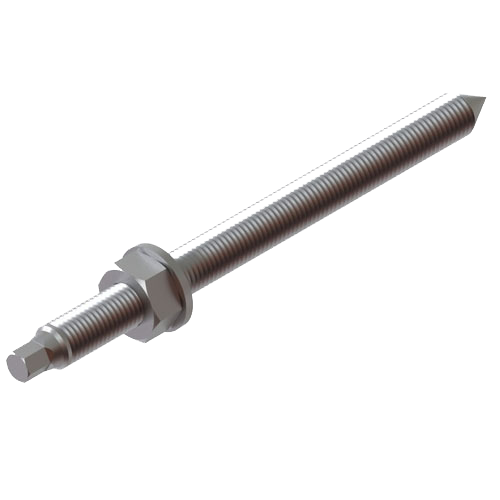

Chemical anchors refer to bonding used between metallic elements and substrate materials.

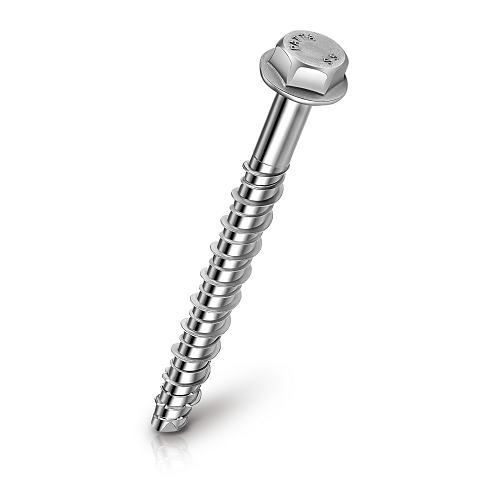

Concrete Screw AnchorsMasonry Screws
Diameter
From 3/16" - Upto 3/4"
Length
Min 1-1/4" - Max 6-1/4"
They are self-tapping screws that can be used in a variety of base materials that include: concrete, brick, mortar joints/block and CMU.

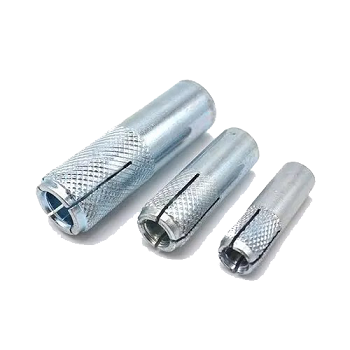

Drop-In AnchorsBullet Anchors
Diameter
From 1/4" - Upto 3/4"
Embedment Length
Min 1" - Max 3-3/16"
Drop-in anchors are internally threaded expansion anchors with a preassembled expander plug. This type of anchor is used for flush mount applications in solid base materials.
Closed Hook AnchorFan Hook
Diameter
From 6 - Upto 12
A type of mounting system where the ceiling fan hangs on a hardened metal hook, screwed into the ceiling or bolted through a steel I-beam.
Pin Type Anchor BoltHit Anchors
Diameter
From 6 - Upto 24
Length
Min 40MM - Max 600MM
Pin Type Anchors are impact-expansion type concrete anchors with an interior hole extending the length of the anchor.

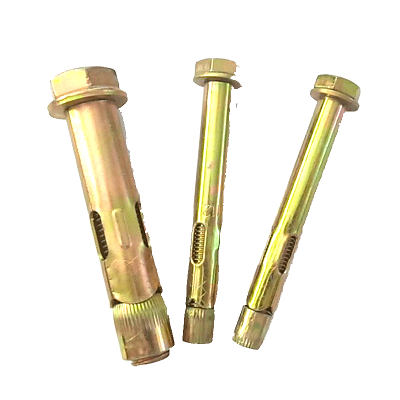

Sleeve Anchor
Diameter
From 1/4" - Upto 7/8"
Length
Min 1-1/2" - Max 5"
Sleeve anchors are versatile masonry expansion anchors.

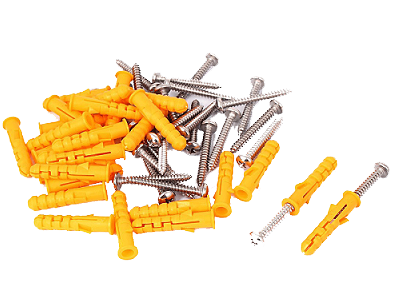

Nylon Frame Fixing AnchorWall Screw Anchor/ S Plug Anchor
Diameter
From 6 - Upto 10
Length
Min 40 - Max 160
Nylon Anchors are a removable light duty, impact/rotation setting, interference fit anchor, with a variety of head styles, designed for use in a variety of substrates such as concrete, stone, solid brick, solid block, grout filled block and hollow block.

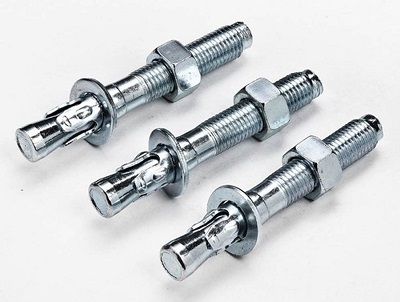

Wedge AnchorThrough Bolts
Diameter
From 1/4” - Upto 1-1/4”
From M6 - Upto M20
Embedment Length
Min 1-1/8" - Max 5-1/2”
Min 50MM - Max 300MM
A wedge anchor is a type of specialty fastener used to attach objects to concrete or masonry structures.
Fischer Anchors
These are available in different models and are tailor made as per your requirements-FAZ ll, FBZ, FBN ll, FWA, FXA
Hilti Anchors
These are available in different models and are tailor made as per your requirements-Screw, wedge, plastic, dry wall, sleeve and nail anchors

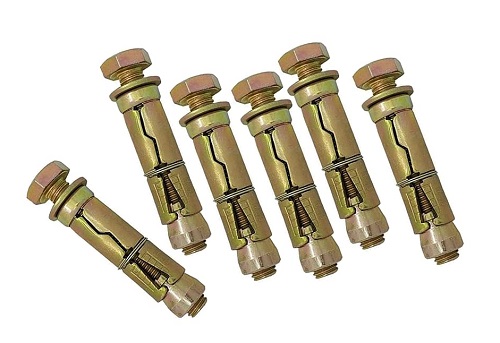

Rawl Bolts
Diameter
From M6 - Upto M24
Length
Min 40MM - Max 300MM
They are a general purpose anchor bolt for use in brickwork, stone and concrete.
Drywall Screws
Diameter
From 3.5 - Upto 4.2
These anchors can be made from plastic, nylon, or zinc-coated. The threads cut deep into the material to provide a secure hold and a pull-out resistant grip. The large threads are intended to hold firmly in drywall and will accept #6 or #8 sheet metal screws.
